Coaxial Cable Made in China can be bought with Low Price from Kennects. It is a professional high quality Products Manufacturers and Factory in China. We are a China company that can provide Customized Products service. If you want Pricelist and Quotation, you can ask us by leaving a message. We will get back to you as soon as possible.
Coaxial Cable Made in China can be bought with Low Price from Kennects. It is a professional high quality Products Manufacturers and Factory in China. We are a China company that can provide Customized Products service. If you want Pricelist and Quotation, you can ask us by leaving a message. We will get back to you as soon as possible.

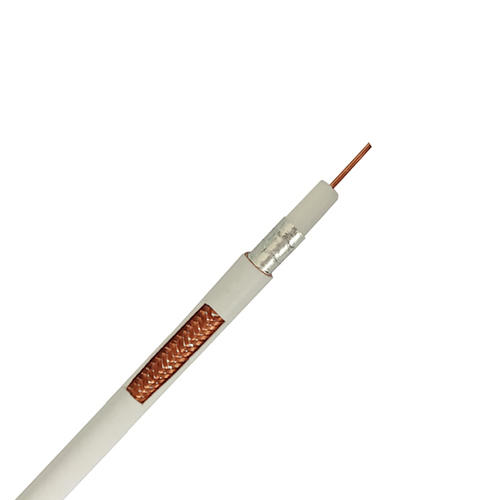

Coaxial Cable
| Application: | Local Communication Cable, Coaxial Cable, RF Cable |
| Conductor Material: | BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: | PVC |
| Type: | Coaxial |
| Material Shape: | Round Wire |
| Conductor Type: | Solid/Stranded/Braid |
| Model NO. | KE CC | Wire Core Material | Bare Copper Wire |
| Certification | CE, RoHS | Model | Coaxial |
| Brand | Kennects | Certificate | Ce.RoHS |
| Transport Package | Carton | Specification | RG58 RG59 RG6 RG62 RG11 RG174 RG213 RG223 3C2V and |
| Trademark | Kennects | Origin | Zhejiang, P. R. China |
| HS Code | 8544491100 | Production Capacity | 200000000meter/Year |
| Type | Conductor | Insulation | Screening foil | Braid Shield | Nominal O.D. | Nominal Impedance |
| No./mm | mm |
|
No./mm | mm | ohm | |
| RG-59/U | 0.643CCS | 3.71FPE | Al-foil | 32/0.12 | 6.15±0.2 | 93Ω |
| RG-59/U | 0.643CCS | 3.71FPE | Al-foil | 64/0.12 | 6.15±0.2 | 93Ω |
| RG-59/U | 0.643CCS | 3.71FPE | Al-foil | 96/0.12 | 6.15±0.2 | 93Ω |
| RG-59B/U | 0.584CCS | 3.71FPE |
|
64/0.12 | 6.15±0.2 | 75Ω |
| RG-59B/U | 0.584CCS | 3.71FPE |
|
96/0.12 | 6.15±0.2 | 75Ω |
| RG-59B/U | 0.584CCS | 3.71FPE |
|
112/0.12 | 6.15±0.2 | 75Ω |
| RG-59B/U | 0.584CCS | 3.71FPE |
|
112/0.16 | 6.15±0.2 | 75Ω |
| RG-6/U | 1.02CCS | 4.65FPE | Al-foil | 48/0.12 | 6.8±0.2 | 75Ω |
| RG-6/U | 1.02CCS | 4.65FPE | Al-foil | 64/0.12 | 6.8±0.2 | 75Ω |
| RG-6/U | 1.02CCS | 4.65FPE | Al-foil | 96/0.12 | 6.8±0.2 | 75Ω |
| RG-6/U | 1.02CCS | 4.65FPE | Al-foil | 112/0.12 | 6.8±0.2 | 75Ω |
| RG-6/U | 1.02CCS | 4.65FPE | Al-foil | 112/0.16 | 6.8±0.2 | 75Ω |
| RG-11/U | 1.63CU | 7.24FPE | Al-foil double | 96/0.12 | 10.3±0.2 | 75Ω |
| RG-11/U | 1.63CU | 7.24FPE | Al-foil double | 112/0.12 | 10.3±0.2 | 75Ω |
| RG-11/U | 1.63CU | 7.24FPE | Al-foil double | 144/0.12 | 10.3±0.2 | 75Ω |
| RG-11/U | 1.63CU | 7.24FPE | Al-foil double | 168/0.12 | 10.3±0.2 | 75Ω |
| RG-213/U | 7*0.75CU | 7.24PE |
|
96/0.12 | 10.3±0.2 | 50Ω |
| RG-213/U | 7*0.75CU | 7.24PE |
|
112/0.12 | 10.3±0.2 | 50Ω |
| RG-213/U | 7*0.75CU | 7.24PE |
|
144/0.12 | 10.3±0.2 | 50Ω |
| RG-213/U | 7*0.75CU | 7.24PE |
|
168/0.12 | 10.3±0.2 | 50Ω |
| RG-223/U | 0.90 S P | 3.2PE |
|
112/0.12 | 5.4±0.2 | 50Ω |
| RG-223/U | 0.90 S P | 3.2PE |
|
128/0.12 | 5.4±0.2 | 50Ω |
| RG-58/U | 0.815CU | 2.95PE | Al-foil | 64/0.12 | 4.95±0.2 | 50Ω |
| RG-58/U | 0.815CU | 2.95PE | Al-foil | 96/0.12 | 4.95±0.2 | 50Ω |
| RG-58/U | 0.815CU | 2.95PE | Al-foil | 112/0.12 | 4.95±0.2 | 50Ω |
| RG-58A/U | 19*0.18TC | 2.95PE |
|
112/0.12 | 4.95±0.2 | 50Ω |
| RG-174/U | 7*0.16TC | 1.60PE |
|
48/0.12 | 2.8±0.2 | 50Ω |
| RG-174/U | 7*0.16TC | 1.60PE |
|
64/0.12 | 2.8±0.2 | 50Ω |
| RG-174/U | 7*0.16TC | 1.60PE |
|
80/0.12 | 2.8±0.2 | 50Ω |
| RG-62/U | 0.643CCS | 3.71PE | Al-foil | 64/0.12 | 6.15±0.2 | 50Ω |
| RG-62/U | 0.643CCS | 3.71PE | Al-foil | 96/0.12 | 6.15±0.2 | 50Ω |
| RG-62/U | 0.643CCS | 3.71PE | Al-foil | 112/0.12 | 6.15±0.2 | 50Ω |
| Type | Conductor Strandings | Insulation Thickness | Braid Shield | Jacket Thickness | Moninal O.D. | Nominal Impedance | Nominal Attenuation |
| No./mm | mm | No./mm | mm | mm | ohm | dB/km | |
| 1.5C-2V | 1/0.26 | 0.67 | 16*5/0.10 | 0.4 | 2.9 | 75 | 96 |
| 2.5C-2V | 1/0.40 | 1.00 | 16*5*0.12 | 0.5 | 4.0 | 75 | 52 |
| 3C-2V | 1/0.50 | 1.30 | 16*7/0.12 | 0.8 | 5.4 | 75 | 42 |
| 4.5C-2V | 1/0.90 | 4.2FPE | 16*4/0.12 | 0.9 | 6.5 | 75 | 27 |
| 5C-2V | 1/0.80 | 2.05 | 16*7/0.14 | 0.9 | 7.4 | 75 | 27 |
| 7C-2V | 7/0.40 | 3.05 | 24*8/0.14 | 1.1 | 10.4 | 75 | 22 |
| 10C-2V | 7/0.50 | 3.95 | 24*10/0.14 | 1.3 | 13.0 | 75 | 18 |
| 20C-2V | 1/2.90 | 8.05 | 32*10/0.14 | 1.9 | 24.1 | 75 | 7.4 |
| 1.5D-2V | 7/0.18 | 0.53 | 16*5/0.10 | 0.4 | 2.9 | 50 | 85 |
| 2.5D-2V | 1/0.80 | 0.95 | 16*6/0.12 | 0.5 | 4.3 | 50 | 45 |
| 3D-2V | 7/0.32 | 1.02 | 16*7/0.12 | 0.8 | 5.3 | 50 | 47 |
| 5D-2V | 1/1.40 | 1.70 | 24*5/0.14 | 0.9 | 7.3 | 50 | 27 |
| 8D-2V | 7/0.80 | 2.70 | 24*8/0.14 | 1.2 | 11.1 | 50 | 20 |
| 10D-2V | 1/2.90 | 3.40 | 24*10/0.14 | 1.2 | 13.1 | 50 | 14 |
| 20D-2V | 1/6.00 | 7.40 | 32*10/0.14 | 2.0 | 26.1 | 50 | 6.6 |
