Cat5e Cable+ Rvv Power Cable Made in China can be bought with Low Price from Kennects. It is a professional high quality Products Manufacturers and Factory in China. We are a China company that can provide Customized Products service. If you want Pricelist and Quotation, you can ask us by leaving a message. We will get back to you as soon as possible.
| Type: | Insulated |
| Conductor Type: | Stranded |
| Application: | Home Appliance |
| Conductor Material: | Copper |
| Sheath Material: | PVC |
| Insulation Material: | PVC |
| Model NO. | KE PC | Material Shape | Round Wire |
| Range of Application | Home Appliance | Certification | CE, RoHS |
| Brand | Kennects | Certificate | Ce.RoHS |
| Transport Package | Carton | Specification | 1-16mm2 |
| Trademark | Kennects | Origin | Zhejiang, P. R. China |
| HS Code | 8544491100 | Production Capacity | 200000000meter/Year |

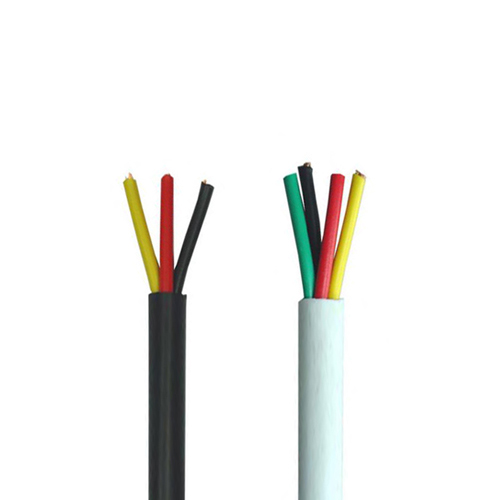

H03VV-F,H03VVH2-F,H05VV-F,H05V2V2-F,227 IEC(RVV) PVC Flexible Cable
Standard:IEC 227,VDE0281,IEC227 HD 21.12.S3,GB5023.5-1997
Description
Conductor:stranded bare copper
Insulation:colour coded pvc
Rated temperature:70ºC,90ºC
Rated voltage:300/500V
Application
For indoor small electrical instruments,for heavy duty usage,esp. suitable,for high temperatureconditions
| Specification | Conductor construction | Insulation Thickness | Sheath Thickness | Overall Diameter | |
| No. of core | Normal area(mm2) | ||||
| 2 | 0.75 | 24/0.20 | 0.6 | 0.8 | 6.4±0.2 |
| 4.0*6.5±0.2 | |||||
| 1.0 | 32/0.20 | 0.6 | 0.8 | 6.8±0.2 | |
| 4.2*6.9±0.2 | |||||
| 1.5 | 30/0.25 | 0.7 | 0.8 | 7.8±0.2 | |
| 2.5 | 49/0.25 | 0.8 | 1.0 | 9.4±0.2 | |
| 4.0 | 56/0.30 | 0.8 | 1.1 | 11.3±0.2 | |
| 3 | 0.75 | 24/0.20 | 0.6 | 0.8 | 6.8±0.2 |
| 1.0 | 32/0.20 | 0.6 | 0.8 | 7.2±0.2 | |
| 1.5 | 30/0.25 | 0.7 | 0.9 | 8.5±0.2 | |
| 2.5 | 49/0.25 | 0.8 | 1.1 | 10.1±0.2 | |
| 4.0 | 56/0.30 | 0.8 | 1.2 | 12.2±0.2 | |
| 4 | 0.75 | 24/0.20 | 0.6 | 0.8 | 7.57±0.2 |
| 1.0 | 32/0.20 | 0.6 | 1.2 | 8.63±0.2 | |
| 1.5 | 30/0.25 | 0.7 | 1.0 | 9.42±0.2 | |
| 2.5 | 49/0.25 | 0.8 | 1.1 | 11.69±0.2 | |
| 4.0 | 56/0.30 | 0.8 | 1.2 | 13.34±0.2 | |
| 5 | 0.75 | 24/0.20 | 0.6 | 0.9 | 8.46±0.2 |
| 1.0 | 32/0.20 | 0.6 | 0.9 | 8.85±0.2 | |
| 1.5 | 30/0.25 | 0.7 | 1.1 | 10.47±0.2 | |
| 2.5 | 49/0.25 | 0.8 | 1.2 | 13.0±0.2 | |
| 4.0 | 56/0.30 | 0.8 | 1.4 | 15.02±0.2 | |
